mini gsm gprs vehicle car OBDII II 2 OBD obd2 gps tracker locator tracking device anti theft alarm system

Warehouse in Russia and Spain

Ship from Russian/Spain warehouse will be FREE of customs tax.

Russian warehouse only ship to Russia local address.

Spain warehouse can ship to Spain Local (expect Canary Islands) for any quantity, no minimum order quantity requirement.

Spain warehouse can ship to below countries(minimum order quantity 10PCS): UK, Portugal, France, Germany, Italy, Austria, Luxembourg, Netherlands, Belgium, Czech Republic, Denmark, Hungary, Poland, Slovenia, Slovakia,Switherland, Ireland, Hungary,Estonia,Finland,Croatia,Lithuania,Latvia,Sweden,Greece,Malta,Cyprus.

GPS Tracker Function

Work with any 16 – pin OBD interface cars and truck

Free installation, no wiring harness, simply plugs into Car OBD port.

GSM850/900/1800/1900MHZ quad band

Wide input voltage range: 12-24VDC

GPS+LBS real time locating via SMS, web platform and mobile application

Built in vibration sensor for intelligent anti-theft

180 days history route replay

Geo-fence alarm

Trip plan

Over speed alarm

Build in battery for back up

Specification

GPS sensitivity:–162Db
GPS frequency:L1,1575.42 MHz
C/ A code:1.023 MHz chip rate
Channel 56 channel all-in-view tracking
Location Accuracy:10 meters, 2D RMS
Speed Accuracy:0.1m/s
Time Accuracy:1 microsecond time synchronization of satellite time
Default Data:WGS-84
Updated Time:average 0.1 sec
Hot Start:Average 1 sec.
Warm Start:average 30 sec.
Cold Start:Average 32 sec.
Maximum Height:18,000 meters (60,000 feet) max.
Maximum Speed:515 meters/second (1000 knots) max.
Maximum Acceleration:Less than 4g
Instantaneous displacement:20 m/sec

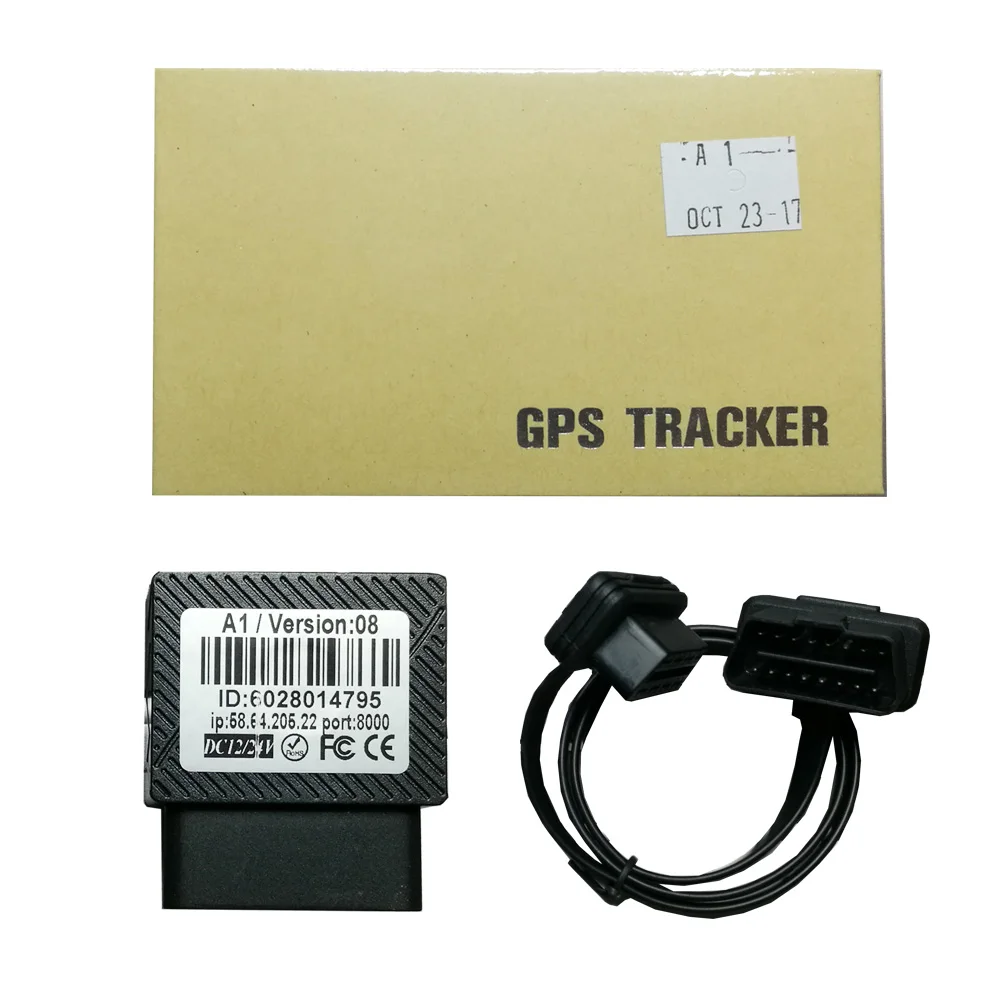

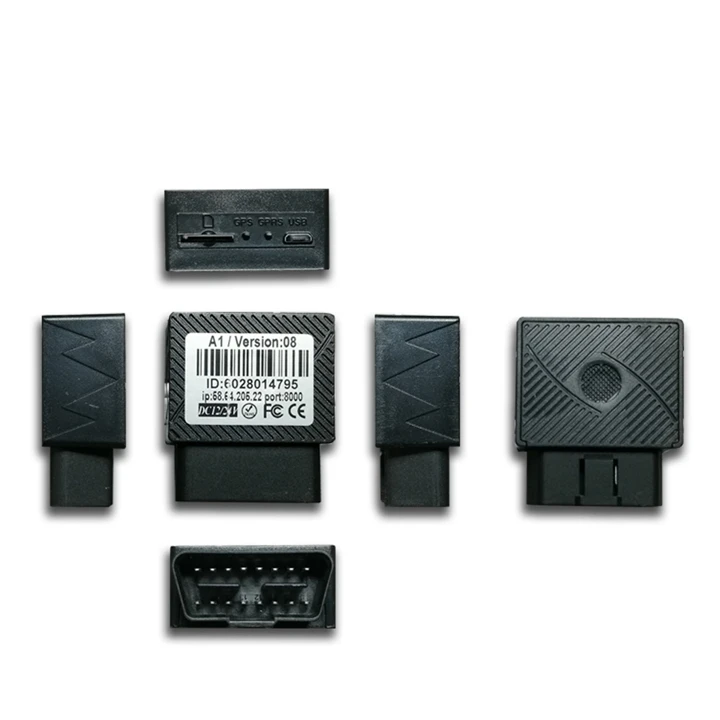

Product Photo

GPS Platform Introduction

Quick Steps to Use iTracksafe GPS Tracker

See Video Tutorial of itracksafe gps tracker&platform from our channel

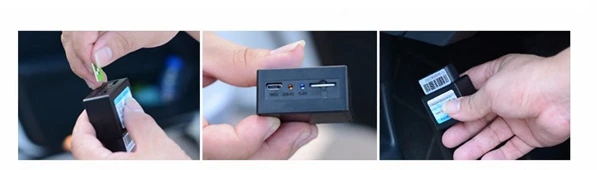

1/Buy proper SIM Card from your local operator and input SIM Card

Make sure the sim card has enabled the call id display function, and disable call transfer.

Remove Pincode

Make sure SMS format is pure text, not PDU format

Make sure you input 2G SIM card

2/ Find Car OBD Port and install

3/Start tracking by SMS to get real time location

Text the number 6690000 to the gps tracker sim phone number, gps tracker will reply a google maps locationa link.
you will receive a Google Maps link of position, when sending message “6690000” to SIM card phone number in tracker .
Command：6690000
Reply：Google link
E.g： 6690000

Note: Ignore the below steps if you only want to locate by sms(text message) and phone call.

Set server IP address and Port

Command:
8040000 www.itracksafe.com 8000
Reply: SET SERVER IP AND PORT OK

Set APN

Every sim card carrier has own APN content, contact carrier directly to get their APN, or check sim card carrier on internet or put sim card into cell phone to find out APN.

4/ Track by Mobile Apps:

Search “iTracksafe plus“ in the Apple App Store&Google Pla Store .
Or Scan the QR Code to install the applications on
your cell phone.

Register login group user name via yourself,you can manage multi-devices in one account.

Fill in the login user name, password, your name, phone number, email address, etc. and submit it.

Register Device-Manage Mulit Devices in one account

Log in and select “My”, then select “Device Manage”.

5/ Track by Website from your PC

Note: If you already register user name and device on mobile apps “itracksafe plus” please ignore below steps:

Register login group user name via yourself,you can manage multi-devices in one account.

Register Device-Manage Mulit Devices in one account

SMS Command

Please contact us for more setup SMS instructions.

Trouble Shooting
